SPUC::cic Class Reference
[FIR filters, Interpolation filters]

class for CIC digital filter More...

#include <cic.h>

List of all members.

Public Member Functions
	cic (char n=3)
	Constructor.
void	reset ()
	Reset.
signed long	interpolate (signed long in=0, signed char dump=0)
	For CIC interpolation, non-zero dump implies new input.
signed long	decimate (signed long in, signed char dump)
	For CIC decimation, non-zero dump implies output required.
void	num_stages (char n)
	To change the number of stages dynamically.
Protected Attributes
signed long *	nacc
signed long *	diff
	Accumulators.
signed long *	prev
	Differentiators.
char	stages
	Previous values.

---

Detailed Description

class for CIC digital filter

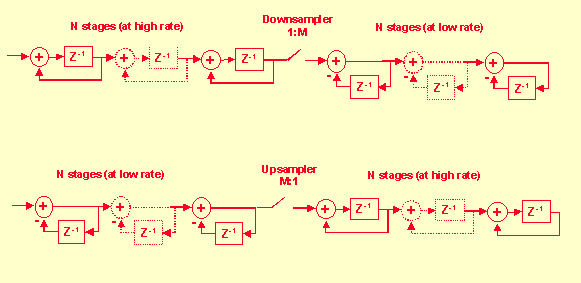

Implementation for cascaded integrator comb filters This implementation provides for both decimation and interpolation filtering. Registers are signed long and the default number of stages is 3.

---

Constructor & Destructor Documentation

SPUC::cic::cic (  char  n = 3  )

Constructor.

---

Member Function Documentation

signed long SPUC::cic::decimate (  signed long  in, signed char  dump )

For CIC decimation, non-zero dump implies output required.

signed long SPUC::cic::interpolate (  signed long  in = 0, signed char  dump = 0 )

For CIC interpolation, non-zero dump implies new input.

void SPUC::cic::num_stages (  char  n  )

To change the number of stages dynamically.

void SPUC::cic::reset (  void   )  [inline]

Reset.

---

Member Data Documentation

signed long* SPUC::cic::diff [protected]

Accumulators.

signed long* SPUC::cic::nacc [protected]

signed long* SPUC::cic::prev [protected]

Differentiators.

char SPUC::cic::stages [protected]

Previous values.

---

The documentation for this class was generated from the following files:

• generic/cic.h
• generic/cic.cpp

---
