SPUC::Mat

SPUC::Mat< T > Class Template Reference

Templated Matrix Class. More...

#include <matrix.h>

Collaboration diagram for SPUC::Mat< T >:

[legend]List of all members.


Public Member Functions
	Mat ()
	Class constructor.
	Mat (int inrow, int incol)
	Create a matrix of size (inrow, incol).
	Mat (const Mat< T > &m)
	Create a copy of the matrix `m`.

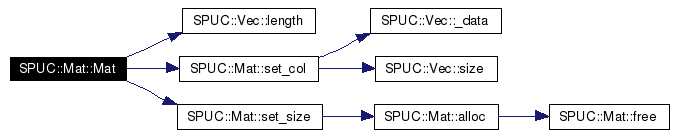

	Mat (const Vec< T > &invector)
	Create a copy of the vector `invector` treated as a column vector.

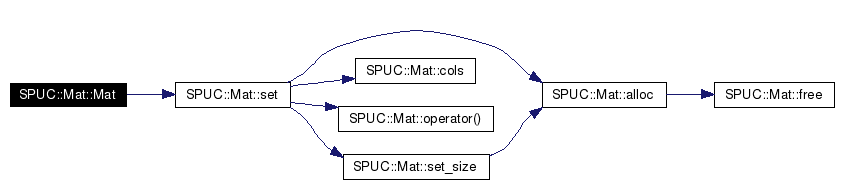

	Mat (const char *str)
	Set matrix equal to values in string.
	Mat (T *c_array, int rows, int cols, bool RowMajor=true)
	Constructor taking a C-array as input. Copies all data.
	~Mat ()
	Class destructor.
int	cols () const
	The number of columns.
int	rows () const
	The number of rows.
void	set_size (int inrow, int incol, bool copy=false)
	Set size of matrix. If copy = true then keep the data before resizing.
void	zeros ()
	Set matrix equal to the all zero matrix.
void	clear ()
	Set matrix equal to the all zero matrix.
void	ones ()
	Set matrix equal to the all one matrix.
bool	set (const char *str)
	Set matrix equal to values in the string.
const T &	operator() (int R, int C) const
	Get element (R,C) from matrix.
T &	operator() (int R, int C)
	Get element (R,C) from matrix.
T &	operator() (int index)
	Get element `index` using linear addressing (by rows).
const T &	operator() (int index) const
	Get element `index` using linear addressing (by rows).
const Mat< T >	operator() (int r1, int r2, int c1, int c2) const
	Sub-matrix from row `r1` to row `r2` and columns `c1` to `c2`.
Vec< T >	get_row (int Index) const
	Get row `Index`.
Mat< T >	get_rows (int r1, int r2) const
	Get rows `r1` through `r2`.
Mat< T >	get_rows (const Vec< int > &indexlist) const
	Get the rows specified by `indexlist`.
Vec< T >	get_col (int Index) const
	Get column `Index`.
Mat< T >	get_cols (int c1, int c2) const
	Get columns `c1` through `c2`.
Mat< T >	get_cols (const Vec< int > &indexlist) const
	Get the columns specified by `indexlist`.
void	set_row (int Index, const Vec< T > &invector)
	Set row `Index` to `invector`.
void	set_col (int Index, const Vec< T > &invector)
	Set column `Index` to `invector`.
void	copy_row (int to, int from)
	Copy row `from` onto row `to`.
void	copy_col (int to, int from)
	Copy column `from` onto column `to`.
void	swap_rows (int r1, int r2)
	Swap the rows `r1` and `r2`.
void	swap_cols (int c1, int c2)
	Swap the columns `c1` and `c2`.
void	set_submatrix (int r1, int r2, int c1, int c2, const Mat< T > &m)
	Set submatrix defined by rows r1,r2 and columns c1,c2 to matrix m.
void	set_submatrix (int r1, int r2, int c1, int c2, const T t)
	Set all elements of submatrix defined by rows r1,r2 and columns c1,c2 to value t.
void	operator= (T t)
	Set all elements of the matrix equal to `t`.
void	operator= (const Mat< T > &m)
	Set matrix equal to `m`.

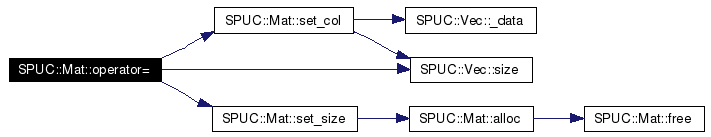

void	operator= (const Vec< T > &v)
	Set matrix equal to the vector `v`, assuming column vector.

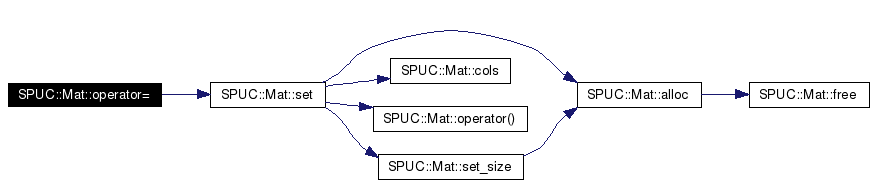

void	operator= (const char *values)
	Set matrix equal to values in the string.
void	operator+= (const Mat< T > &m)
	Addition of matrices.
void	operator+= (T t)
	Addition of scalar to matrix.
void	operator-= (const Mat< T > &m)
	Subtraction of matrix.
void	operator-= (T t)
	Subtraction of scalar from matrix.
void	operator *= (const Mat< T > &m)
	Matrix multiplication.
void	operator *= (T t)
	Multiplication by a scalar.
void	operator/= (T t)
	Division by a scalar.
void	operator/= (const Mat< T > &m)
	Elementwise division with the current matrix.
bool	operator== (const Mat< T > &m) const
	Compare two matrices. False if wrong sizes or different values.
bool	operator!= (const Mat< T > &m) const
	Compare two matrices. True if different.
T &	_elem (int R, int C)
	Get element (R,C) from matrix without boundary check (Not recommended to use).
const T &	_elem (int R, int C) const
	Get element (R,C) from matrix without boundary check (Not recommended to use).
T &	_elem (int index)
	Get element `index` using linear addressing (by rows) without boundary check (Not recommended to use).
const T &	_elem (int index) const
	Get element `index` using linear addressing (by rows) without boundary check (Not recommended to use).
T *	_data ()
	Access of the internal data structure. Don't use. May be changed!
const T *	_data () const
	Access to the internal data structure. Don't use. May be changed!
int	_datasize () const
	Access to the internal data structure. Don't use. May be changed!
Protected Member Functions
void	alloc (int rows, int cols)
	Allocate memory for the matrix.
void	free ()
	Free the memory space of the matrix.
Protected Attributes
int	datasize
	Protected integer variables.
int	no_rows
int	no_cols
T *	data
	Protected data pointer.
Friends
Mat< T > concat_horizontal	TEMPLATE_FUN (const Mat< T > &m1, const Mat< T > &m2)
	Concatenate the matrices `m1` and `m2` horizontally.
Mat< T > concat_vertical	TEMPLATE_FUN (const Mat< T > &m1, const Mat< T > &m2)
	Concatenate the matrices `m1` and `m2` vertically.
Mat< T >	operator+TEMPLATE_FUN (const Mat< T > &m1, const Mat< T > &m2)
	Addition of two matrices.
Mat< T >	operator+TEMPLATE_FUN (const Mat< T > &m, T t)
	Addition of matrix and scalar.
Mat< T >	operator+TEMPLATE_FUN (T t, const Mat< T > &m)
	Addition of scalar and matrix.
Mat< T >	operator-TEMPLATE_FUN (const Mat< T > &m1, const Mat< T > &m2)
	Subtraction of `m2` from `m1`.
Mat< T >	operator-TEMPLATE_FUN (const Mat< T > &m, T t)
	Subraction of scalar from matrix.
Mat< T >	operator-TEMPLATE_FUN (T t, const Mat< T > &m)
	Subtract matrix from scalar.
Mat< T >	operator-TEMPLATE_FUN (const Mat< T > &m)
	Subraction of matrix.
Mat< T >	operator *TEMPLATE_FUN (const Mat< T > &m1, const Mat< T > &m2)
	Multiplication of two matrices.
Vec< T >	operator *TEMPLATE_FUN (const Mat< T > &m, const Vec< T > &v)
	Multiplication of matrix `m` and vector `v` (column vector).
Vec< T >	operator *TEMPLATE_FUN (const Vec< T > &v, const Mat< T > &m)
	Multiplication of transposed vector `v` and matrix `m`.
Mat< T >	operator *TEMPLATE_FUN (const Mat< T > &m, T t)
	Multiplication of matrix and scalar.
Mat< T >	operator *TEMPLATE_FUN (T t, const Mat< T > &m)
	Multiplication of scalar and matrix.
Mat< T > elem_mult	TEMPLATE_FUN (const Mat< T > &m1, const Mat< T > &m2)
	Elementwise multiplication of two matrices.
Mat< T >	operator/TEMPLATE_FUN (const Mat< T > &m, T t)
	Division of matrix with scalar.
Mat< T > elem_div	TEMPLATE_FUN (const Mat< T > &m1, const Mat< T > &m2)
	Elementwise division of matrix `m1` with matrix `m2`.
Related Functions
(Note that these are not member functions.)
typedef Mat< double >	mat
	Output stream for matrices Default Matrix Type.
typedef Mat< complex< double > >	cmat
	Default Complex Matrix Type.
typedef Mat< int >	imat
	Integer matrix.
typedef Mat< long_long >	llmat
	long_long matrix
typedef Mat< short int >	smat
	short int matrix
typedef Mat< bin >	bmat
	bin matrix
void	sub_v_vT_m (mat &m, const vec &v)
	Calculates m=m-vv'm.
void	sub_m_v_vT (mat &m, const vec &v)
	Calculates m=m-mvv'.
T	sum (const Mat< T > &m)
	Sum of all elements in the matrix.
T	sum_sqr (const Mat< T > &m)
	Sum of square of the elements in the matrix.
T	max (const Mat< T > &m)
	Maximum value of matrix.
T	min (const Mat< T > &m)
	Minimum value of matrix.
void	max_index (const Mat< T > &in, int &row, int &col)
	The index of the element of maximum value.
void	min_index (const Mat< T > &in, int &row, int &col)
	The index of the element of minimum value.
T	product (const Mat< T > &m)
	The product of all elements in the vector.
double	mean (const mat &m)
	The mean value.
complex< double >	mean (const cmat &m)
	The mean value.
double	mean (const smat &m)
	The mean value.
double	mean (const imat &m)
	The mean value.
Mat< T >	diag (const Vec< T > &in)
	Returns a diagonal matrix whith the elements of the vector `in` on the diagonal and zeros elsewhere.
void	diag (const Vec< T > &in, Mat< T > &m)
	Returns in the output wariable `m` a diagonal matrix whith the elements of the vector `in` on the diagonal and zeros elsewhere.
Vec< T >	diag (const Mat< T > &in)
	Returns the diagonal elements of the input matrix `in`.
Mat< T >	bidiag (const Vec< T > &main, const Vec< T > &sup)
	Returns a matrix with the elements of the input vector `main` on the diagonal and the elements of the input vector `sup` on the diagonal row above.
void	bidiag (const Vec< T > &main, const Vec< T > &sup, Mat< T > &m)
	Returns in the output variable `m` a matrix with the elements of the input vector `main` on the diagonal and the elements of the input vector `sup` on the diagonal row above.
void	bidiag (const Mat< T > &in, Vec< T > &main, Vec< T > &sup)
	Returns the main diagonal and the diagonal row above in the two output vectors `main` and `sup`.
Mat< T >	tridiag (const Vec< T > &main, const Vec< T > &sup, const Vec< T > &sub)
	Returns a matrix with the elements of `main` on the diagonal, the elements of `sup` on the diagonal row above, and the elements of `sub` on the diagonal row below.
void	tridiag (const Vec< T > &main, const Vec< T > &sup, const Vec< T > &sub, Mat< T > &m)
	Returns in the output matrix `m` a matrix with the elements of `main` on the diagonal, the elements of `sup` on the diagonal row above, and the elements of `sub` on the diagonal row below.
void	tridiag (const Mat< T > &in, Vec< T > &main, Vec< T > &sup, Vec< T > &sub)
	Returns the main diagonal, the diagonal row above, and the diagonal row below int the output vectors `main`, `sup`, and `sub`.
T	trace (const Mat< T > &in)
	The trace of the matrix, i.e. the sum of the diagonal elements.
void	transpose (const Mat< T > &m, Mat< T > &out)
	Transposition of the matrix returning the transposed matrix in out.
Mat< T >	transpose (const Mat< T > &m)
	Transposition of the matrix.
Mat< T >	repeat (const Mat< T > &m, int norepeats)
	Repeats each column norepeats times in sequence.
Mat< T >	apply_function (fT(*f)(fT), const Mat< T > &data)
	Apply arbitrary functions to a matrix.
Vec< T >	rvectorize (const Mat< T > &m)
	Row vectorize the matrix [(0,0) (0,1) ... (N-1,N-2) (N-1,N-1)].
Vec< T >	cvectorize (const Mat< T > &m)
	Column vectorize the matrix [(0,0) (1,0) ... (N-2,N-1) (N-1,N-1)].
Mat< T >	reshape (const Mat< T > &m, int rows, int cols)
	Reshape the matrix into an rows*cols matrix.
Mat< T >	reshape (const Vec< T > &m, int rows, int cols)
	Reshape the vector into an rows*cols matrix.
void	upsample (const Mat< T > &v, int usf, Mat< T > &u)
	Upsample each column by incerting (usf-1) zeros after each column.
Mat< T >	upsample (const Mat< T > &v, int upsamplefactor)
	Upsample each column by incerting (usf-1) zeros after each column.
void	lininterp (const Mat< T > &v, int usf, Mat< T > &u)
	Upsample each column by a factor of (usf-1) by linear interpolation.
Mat< T >	lininterp (const Mat< T > &v, int usf)
	Upsample each column by a factor of (usf-1) by linear interpolation.
void	lininterp (const Vec< T > &v, int usf, Vec< T > &u)
	Upsample by a factor of (usf-1) by linear interpolation.
Vec< T >	lininterp (const Vec< T > &v, int usf)
	Upsample by a factor of (usf-1) by linear interpolation.
Mat< T >	mat_1x1 (T m00)
	Matrix of size 1 by 1.
Mat< T >	mat_1x2 (T m00, T m01)
	Matrix of size 1 by 2.
Mat< T >	mat_2x1 (T m00, T m10)
	Matrix of size 2 by 1.
Mat< T >	mat_2x2 (T m00, T m01, T m10, T m11)
	Matrix of size 2 by 2.
Mat< T >	mat_1x3 (T m00, T m01, T m02)
	Matrix of size 1 by 3.
Mat< T >	mat_3x1 (T m00, T m10, T m20)
	Matrix of size 3 by 1.
Mat< T >	mat_2x3 (T m00, T m01, T m02, T m10, T m11, T m12)
	Matrix of size 2 by 3.
Mat< T >	mat_3x2 (T m00, T m01, T m10, T m11, T m20, T m21)
	Matrix of size 3 by 2.
Mat< T >	mat_3x3 (T m00, T m01, T m02, T m10, T m11, T m12, T m20, T m21, T m22)
	Matrix of size 3 by 3.

Detailed Description

template<class T>
class SPUC::Mat< T >

Templated Matrix Class.

Author:: Tony Ottosson and Tobias Ringstrom

Matrices can be of arbitrarily types, but conversions and functions are prepared for bin, short, int, double, and double_complex vectors and these are predefined as: bmat, smat, imat, mat, and cmat. double and double_complex are usually double and complex<double> respectively. However, this can be changed when \ compiling the it++ (see installation notes for more details).

Examples:

Matrix Constructors: When constructing a matrix without a dimensions (memory) use

 mat temp;

For construction of a matrix of a given size use

 mat temp(rows, cols);

It is also possible to assign the constructed matrix the value and dimension of another matrix by

 vec temp(inmatrix);

If you have explicit values you would like to assign to the matrix it is possible to do this using strings as:

  mat a("0 0.7;5 9.3"); // that is a = [0, 0.7; 5, 9.3]
  mat a="0 0.7;5 9.3";  // the constructor are called implicitly

It is also possible to change dimension by

 temp.set_size(new_rows, new_cols, false);

where false is used to indicate that the old values in temp is not copied. If you like to preserve the values use true.

There are a number of methods to access parts of a matrix. Examples are

  a(5,3);     // Element number (5,3)
  a(5,9,3,5);  // Sub-matrix from rows 5, 6, 7, 8, 9 the columns 3, 4, and 5
  a.get_row(10);  // Row 10
  a.get_col(10); // Column 10

It is also possible to modify parts of a vector as e.g. in

  a.set_row(5, invector);    // Set row 5 to \c invector
  a.set_col(3, invector); // Set column 3 to \c invector
  a.copy_col(1, 5); // Copy column 5 to column 1
  a.swap_cols(1, 5); // Swap the contents of columns 1 and 5

It is of course also possible to perform the common linear algebra methods such as addition, subtraction, and matrix multiplication. Observe though, that vectors are assumed to be column-vectors in operations with matrices.

Most elementary functions such as sin(), cosh(), log(), abs(), ..., are available as operations on the individual elements of the matrices. Please see the individual functions for more details.

Constructor & Destructor Documentation

template<class T>

SPUC::Mat< T >::Mat ( ) [inline]

Class constructor.

template<class T>

SPUC::Mat< T >::Mat ( int inrow,

int incol

) [inline]

Create a matrix of size (inrow, incol).

Here is the call graph for this function:

template<class T>

SPUC::Mat< T >::Mat ( const Mat< T > & m ) [inline]

Create a copy of the matrix m.

Here is the call graph for this function:

template<class T>

SPUC::Mat< T >::Mat ( const Vec< T > & invector ) [inline]

Create a copy of the vector invector treated as a column vector.

Here is the call graph for this function:

template<class T>

SPUC::Mat< T >::Mat ( const char * str ) [inline]

Set matrix equal to values in string.
Mat(const std::string &str) { init(); set(str); }
Here is the call graph for this function:

template<class T>

SPUC::Mat< T >::Mat ( T * c_array,

int rows,

int cols,

bool RowMajor = true

) [inline]

Constructor taking a C-array as input. Copies all data.
By default the matrix is stored as a RowMajor matrix (i.e. listing elements in sequence beginning with the first column).
Here is the call graph for this function:

template<class T>

SPUC::Mat< T >::~Mat ( ) [inline]

Class destructor.

Here is the call graph for this function:

Member Function Documentation

template<class T>

const T* SPUC::Mat< T >::_data ( ) const [inline]

Access to the internal data structure. Don't use. May be changed!

template<class T>

T* SPUC::Mat< T >::_data ( ) [inline]

Access of the internal data structure. Don't use. May be changed!

template<class T>

int SPUC::Mat< T >::_datasize ( ) const [inline]

Access to the internal data structure. Don't use. May be changed!

template<class T>

const T& SPUC::Mat< T >::_elem ( int index ) const [inline]

Get element index using linear addressing (by rows) without boundary check (Not recommended to use).

template<class T>

T& SPUC::Mat< T >::_elem ( int index ) [inline]

Get element index using linear addressing (by rows) without boundary check (Not recommended to use).

template<class T>

const T& SPUC::Mat< T >::_elem ( int R,

int C

) const [inline]

Get element (R,C) from matrix without boundary check (Not recommended to use).

template<class T>

T& SPUC::Mat< T >::_elem ( int R,

int C

) [inline]

Get element (R,C) from matrix without boundary check (Not recommended to use).

template<class T>

void SPUC::Mat< T >::alloc ( int rows,

int cols

) [inline, protected]

Allocate memory for the matrix.

Here is the call graph for this function:

template<class T>

void SPUC::Mat< T >::clear ( ) [inline]

Set matrix equal to the all zero matrix.

Here is the call graph for this function:

template<class T>

int SPUC::Mat< T >::cols ( ) const [inline]

The number of columns.

template<class T>

void SPUC::Mat< T >::copy_col ( int to,

int from

) [inline]

Copy column from onto column to.

template<class T>

void SPUC::Mat< T >::copy_row ( int to,

int from

) [inline]

Copy row from onto row to.

template<class T>

void SPUC::Mat< T >::free ( ) [inline, protected]

Free the memory space of the matrix.

template<class T>

Vec< T > SPUC::Mat< T >::get_col ( int Index ) const [inline]

Get column Index.

Here is the call graph for this function:

template<class T>

Mat< T > SPUC::Mat< T >::get_cols ( const Vec< int > & indexlist ) const [inline]

Get the columns specified by indexlist.

Here is the call graph for this function:

template<class T>

Mat< T > SPUC::Mat< T >::get_cols ( int c1,

int c2

) const [inline]

Get columns c1 through c2.

Here is the call graph for this function:

template<class T>

Vec< T > SPUC::Mat< T >::get_row ( int Index ) const [inline]

Get row Index.

Here is the call graph for this function:

template<class T>

Mat< T > SPUC::Mat< T >::get_rows ( const Vec< int > & indexlist ) const

Get the rows specified by indexlist.

Here is the call graph for this function:

template<class T>

Mat< T > SPUC::Mat< T >::get_rows ( int r1,

int r2

) const

Get rows r1 through r2.

Here is the call graph for this function:

template<class T>

void SPUC::Mat< T >::ones ( ) [inline]

Set matrix equal to the all one matrix.

template<class T>

void SPUC::Mat< T >::operator *= ( T t ) [inline]

Multiplication by a scalar.

template<class T>

void SPUC::Mat< T >::operator *= ( const Mat< T > & m ) [inline]

Matrix multiplication.

Here is the call graph for this function:

template<class T>

bool SPUC::Mat< T >::operator!= ( const Mat< T > & m ) const

Compare two matrices. True if different.

template<class T>

const Mat< T > SPUC::Mat< T >::operator() ( int r1,

int r2,

int c1,

int c2

) const [inline]

Sub-matrix from row r1 to row r2 and columns c1 to c2.
Value -1 indicates the last row and column, respectively.

template<class T>

const T& SPUC::Mat< T >::operator() ( int index ) const [inline]

Get element index using linear addressing (by rows).

template<class T>

T& SPUC::Mat< T >::operator() ( int index ) [inline]

Get element index using linear addressing (by rows).

template<class T>

T& SPUC::Mat< T >::operator() ( int R,

int C

) [inline]

Get element (R,C) from matrix.

template<class T>

const T& SPUC::Mat< T >::operator() ( int R,

int C

) const [inline]

Get element (R,C) from matrix.

template<class T>

void SPUC::Mat< T >::operator+= ( T t ) [inline]

Addition of scalar to matrix.

template<class T>

void SPUC::Mat< T >::operator+= ( const Mat< T > & m ) [inline]

Addition of matrices.

Here is the call graph for this function:

template<class T>

void SPUC::Mat< T >::operator-= ( T t ) [inline]

Subtraction of scalar from matrix.

template<class T>

void SPUC::Mat< T >::operator-= ( const Mat< T > & m ) [inline]

Subtraction of matrix.

Here is the call graph for this function:

template<class T>

void SPUC::Mat< T >::operator/= ( const Mat< T > & m ) [inline]

Elementwise division with the current matrix.

template<class T>

void SPUC::Mat< T >::operator/= ( T t ) [inline]

Division by a scalar.

template<class T>

void SPUC::Mat< T >::operator= ( const char * values ) [inline]

Set matrix equal to values in the string.

Here is the call graph for this function:

template<class T>

void SPUC::Mat< T >::operator= ( const Vec< T > & v ) [inline]

Set matrix equal to the vector v, assuming column vector.

Here is the call graph for this function:

template<class T>

void SPUC::Mat< T >::operator= ( const Mat< T > & m ) [inline]

Set matrix equal to m.

Here is the call graph for this function:

template<class T>

void SPUC::Mat< T >::operator= ( T t ) [inline]

Set all elements of the matrix equal to t.

template<class T>

bool SPUC::Mat< T >::operator== ( const Mat< T > & m ) const

Compare two matrices. False if wrong sizes or different values.

template<class T>

int SPUC::Mat< T >::rows ( ) const [inline]

The number of rows.

template<class T>

bool SPUC::Mat< T >::set ( const char * str )

Set matrix equal to values in the string.

Here is the call graph for this function:

template<class T>

void SPUC::Mat< T >::set_col ( int Index,

const Vec< T > & invector

) [inline]

Set column Index to invector.

Here is the call graph for this function:

template<class T>

void SPUC::Mat< T >::set_row ( int Index,

const Vec< T > & invector

) [inline]

Set row Index to invector.

Here is the call graph for this function:

template<class T>

void SPUC::Mat< T >::set_size ( int inrow,

int incol,

bool copy = false

) [inline]

Set size of matrix. If copy = true then keep the data before resizing.

Here is the call graph for this function:

template<class T>

void SPUC::Mat< T >::set_submatrix ( int r1,

int r2,

int c1,

int c2,

const T t

) [inline]

Set all elements of submatrix defined by rows r1,r2 and columns c1,c2 to value t.

template<class T>

void SPUC::Mat< T >::set_submatrix ( int r1,

int r2,

int c1,

int c2,

const Mat< T > & m

) [inline]

Set submatrix defined by rows r1,r2 and columns c1,c2 to matrix m.

template<class T>

void SPUC::Mat< T >::swap_cols ( int c1,

int c2

) [inline]

Swap the columns c1 and c2.

template<class T>

void SPUC::Mat< T >::swap_rows ( int r1,

int r2

) [inline]

Swap the rows r1 and r2.

template<class T>

void SPUC::Mat< T >::zeros ( ) [inline]

Set matrix equal to the all zero matrix.

Friends And Related Function Documentation

template<class T>

Mat< T > apply_function ( fT(*)(fT) f,

const Mat< T > & data

) [related]

Apply arbitrary functions to a matrix.

template<class T>

void bidiag ( const Mat< T > & in,

Vec< T > & main,

Vec< T > & sup

) [related]

Returns the main diagonal and the diagonal row above in the two output vectors main and sup.
The input matrix in must be a square $n \times n$ matrix. The length of the output vector main will be $n$ and the length of the output vector sup will be $n-1$ .

template<class T>

void bidiag ( const Vec< T > & main,

const Vec< T > & sup,

Mat< T > & m

) [related]

Returns in the output variable m a matrix with the elements of the input vector main on the diagonal and the elements of the input vector sup on the diagonal row above.
If the number of elements in the vector main is $n$ , then the number of elements in the input vector sup must be $n-1$ . The size of the output matrix m will be $n \times n$ .

template<class T>

Mat< T > bidiag ( const Vec< T > & main,

const Vec< T > & sup

) [related]

Returns a matrix with the elements of the input vector main on the diagonal and the elements of the input vector sup on the diagonal row above.
If the number of elements in the vector main is $n$ , then the number of elements in the input vector sup must be $n-1$ . The size of the return matrix will be $n \times n$ .

template<class T>

typedef Mat<bin> bmat [related]

bin matrix

template<class T>

typedef Mat<complex<double> > cmat [related]

Default Complex Matrix Type.

template<class T>

Vec< T > cvectorize ( const Mat< T > & m ) [related]

Column vectorize the matrix [(0,0) (1,0) ... (N-2,N-1) (N-1,N-1)].

template<class T>

Vec< T > diag ( const Mat< T > & in ) [related]

Returns the diagonal elements of the input matrix in.
The input matrix m must be a square $n \times n$ matrix. The size of the output vector will be $n$ .

template<class T>

void diag ( const Vec< T > & in,

Mat< T > & m

) [related]

Returns in the output wariable m a diagonal matrix whith the elements of the vector in on the diagonal and zeros elsewhere.
The size of the output matrix m will be $n \times n$ , where $n$ is the length of the input vector in.

template<class T>

Mat< T > diag ( const Vec< T > & in ) [related]

Returns a diagonal matrix whith the elements of the vector in on the diagonal and zeros elsewhere.
The size of the return matrix will be $n \times n$ , where $n$ is the length of the input vector in.

template<class T>

typedef Mat<int> imat [related]

Integer matrix.

template<class T>

Vec< T > lininterp ( const Vec< T > & v,

int usf

) [related]

Upsample by a factor of (usf-1) by linear interpolation.

template<class T>

void lininterp ( const Vec< T > & v,

int usf,

Vec< T > & u

) [related]

Upsample by a factor of (usf-1) by linear interpolation.

template<class T>

Mat< T > lininterp ( const Mat< T > & v,

int usf

) [related]

Upsample each column by a factor of (usf-1) by linear interpolation.

template<class T>

void lininterp ( const Mat< T > & v,

int usf,

Mat< T > & u

) [related]

Upsample each column by a factor of (usf-1) by linear interpolation.

template<class T>

typedef Mat<long_long> llmat [related]

long_long matrix

template<class T>

typedef Mat<double> mat [related]

Output stream for matrices Default Matrix Type.

template<class T>

Mat< T > mat_1x1 ( T m00 ) [related]

Matrix of size 1 by 1.

template<class T>

Mat< T > mat_1x2 ( T m00,

T m01

) [related]

Matrix of size 1 by 2.

template<class T>

Mat< T > mat_1x3 ( T m00,

T m01,

T m02

) [related]

Matrix of size 1 by 3.

template<class T>

Mat< T > mat_2x1 ( T m00,

T m10

) [related]

Matrix of size 2 by 1.

template<class T>

Mat< T > mat_2x2 ( T m00,

T m01,

T m10,

T m11

) [related]

Matrix of size 2 by 2.

template<class T>

Mat< T > mat_2x3 ( T m00,

T m01,

T m02,

T m10,

T m11,

T m12

) [related]

Matrix of size 2 by 3.

template<class T>

Mat< T > mat_3x1 ( T m00,

T m10,

T m20

) [related]

Matrix of size 3 by 1.

template<class T>

Mat< T > mat_3x2 ( T m00,

T m01,

T m10,

T m11,

T m20,

T m21

) [related]

Matrix of size 3 by 2.

template<class T>

Mat< T > mat_3x3 ( T m00,

T m01,

T m02,

T m10,

T m11,

T m12,

T m20,

T m21,

T m22

) [related]

Matrix of size 3 by 3.

template<class T>

T max ( const Mat< T > & m ) [related]

Maximum value of matrix.

template<class T>

void max_index ( const Mat< T > & in,

int & row,

int & col

) [related]

The index of the element of maximum value.

template<class T>

double mean ( const imat & m ) [related]

The mean value.

template<class T>

double mean ( const smat & m ) [related]

The mean value.

template<class T>

complex< double > mean ( const cmat & m ) [related]

The mean value.

template<class T>

double mean ( const mat & m ) [related]

The mean value.

template<class T>

T min ( const Mat< T > & m ) [related]

Minimum value of matrix.

template<class T>

void min_index ( const Mat< T > & in,

int & row,

int & col

) [related]

The index of the element of minimum value.

template<class T>

Mat<T> operator *TEMPLATE_FUN ( T t,

const Mat< T > & m

) [friend]

Multiplication of scalar and matrix.

template<class T>

Mat<T> operator *TEMPLATE_FUN ( const Mat< T > & m,

T t

) [friend]

Multiplication of matrix and scalar.

template<class T>

Vec<T> operator *TEMPLATE_FUN ( const Vec< T > & v,

const Mat< T > & m

) [friend]

Multiplication of transposed vector v and matrix m.

template<class T>

Vec<T> operator *TEMPLATE_FUN ( const Mat< T > & m,

const Vec< T > & v

) [friend]

Multiplication of matrix m and vector v (column vector).

template<class T>

Mat<T> operator *TEMPLATE_FUN ( const Mat< T > & m1,

const Mat< T > & m2

) [friend]

Multiplication of two matrices.

template<class T>

Mat<T> operator+TEMPLATE_FUN ( T t,

const Mat< T > & m

) [friend]

Addition of scalar and matrix.

template<class T>

Mat<T> operator+TEMPLATE_FUN ( const Mat< T > & m,

T t

) [friend]

Addition of matrix and scalar.

template<class T>

Mat<T> operator+TEMPLATE_FUN ( const Mat< T > & m1,

const Mat< T > & m2

) [friend]

Addition of two matrices.

template<class T>

Mat<T> operator-TEMPLATE_FUN ( const Mat< T > & m ) [friend]

Subraction of matrix.

template<class T>

Mat<T> operator-TEMPLATE_FUN ( T t,

const Mat< T > & m

) [friend]

Subtract matrix from scalar.

template<class T>

Mat<T> operator-TEMPLATE_FUN ( const Mat< T > & m,

T t

) [friend]

Subraction of scalar from matrix.

template<class T>

Mat<T> operator-TEMPLATE_FUN ( const Mat< T > & m1,

const Mat< T > & m2

) [friend]

Subtraction of m2 from m1.

template<class T>

Mat<T> operator/TEMPLATE_FUN ( const Mat< T > & m,

T t

) [friend]

Division of matrix with scalar.

template<class T>

T product ( const Mat< T > & m ) [related]

The product of all elements in the vector.

template<class T>

Mat< T > repeat ( const Mat< T > & m,

int norepeats

) [related]

Repeats each column norepeats times in sequence.

template<class T>

Mat< T > reshape ( const Vec< T > & m,

int rows,

int cols

) [related]

Reshape the vector into an rows*cols matrix.
The data is element by element from the vector and written columnwise into the new matrix.

template<class T>

Mat< T > reshape ( const Mat< T > & m,

int rows,

int cols

) [related]

Reshape the matrix into an rows*cols matrix.
The data is taken columnwise from the original matrix and written columnwise into the new matrix.

template<class T>

Vec< T > rvectorize ( const Mat< T > & m ) [related]

Row vectorize the matrix [(0,0) (0,1) ... (N-1,N-2) (N-1,N-1)].

template<class T>

typedef Mat<short int> smat [related]

short int matrix

template<class T>

void sub_m_v_vT ( mat & m,

const vec & v

) [related]

Calculates m=m-m*v*v'.

template<class T>

void sub_v_vT_m ( mat & m,

const vec & v

) [related]

Calculates m=m-v*v'*m.

template<class T>

T sum ( const Mat< T > & m ) [related]

Sum of all elements in the matrix.

template<class T>

T sum_sqr ( const Mat< T > & m ) [related]

Sum of square of the elements in the matrix.

template<class T>

Mat<T> elem_div TEMPLATE_FUN ( const Mat< T > & m1,

const Mat< T > & m2

) [friend]

Elementwise division of matrix m1 with matrix m2.

template<class T>

Mat<T> elem_mult TEMPLATE_FUN ( const Mat< T > & m1,

const Mat< T > & m2

) [friend]

Elementwise multiplication of two matrices.

template<class T>

Mat<T> concat_vertical TEMPLATE_FUN ( const Mat< T > & m1,

const Mat< T > & m2

) [friend]

Concatenate the matrices m1 and m2 vertically.

template<class T>

Mat<T> concat_horizontal TEMPLATE_FUN ( const Mat< T > & m1,

const Mat< T > & m2

) [friend]

Concatenate the matrices m1 and m2 horizontally.

template<class T>

T trace ( const Mat< T > & in ) [related]

The trace of the matrix, i.e. the sum of the diagonal elements.

template<class T>

Mat< T > transpose ( const Mat< T > & m ) [related]

Transposition of the matrix.

template<class T>

void transpose ( const Mat< T > & m,

Mat< T > & out

) [related]

Transposition of the matrix returning the transposed matrix in out.

template<class T>

void tridiag ( const Mat< T > & in,

Vec< T > & main,

Vec< T > & sup,

Vec< T > & sub

) [related]

Returns the main diagonal, the diagonal row above, and the diagonal row below int the output vectors main, sup, and sub.
The input matrix in must be a square $n \times n$ matrix. The length of the output vector main will be $n$ and the length of the output vectors sup and sup will be $n-1$ .

template<class T>

void tridiag ( const Vec< T > & main,

const Vec< T > & sup,

const Vec< T > & sub,

Mat< T > & m

) [related]

Returns in the output matrix m a matrix with the elements of main on the diagonal, the elements of sup on the diagonal row above, and the elements of sub on the diagonal row below.
If the length of the input vector main is $n$ then the lengths of the vectors sup and sub must equal $n-1$ . The size of the output matrix m will be $n \times n$ .

template<class T>

Mat< T > tridiag ( const Vec< T > & main,

const Vec< T > & sup,

const Vec< T > & sub

) [related]

Returns a matrix with the elements of main on the diagonal, the elements of sup on the diagonal row above, and the elements of sub on the diagonal row below.
If the length of the input vector main is $n$ then the lengths of the vectors sup and sub must equal $n-1$ . The size of the return matrix will be $n \times n$ .

template<class T>

Mat< T > upsample ( const Mat< T > & v,

int upsamplefactor

) [related]

Upsample each column by incerting (usf-1) zeros after each column.

template<class T>

void upsample ( const Mat< T > & v,

int usf,

Mat< T > & u

) [related]

Upsample each column by incerting (usf-1) zeros after each column.

Member Data Documentation

template<class T>

T* SPUC::Mat< T >::data [protected]

Protected data pointer.

template<class T>

int SPUC::Mat< T >::datasize [protected]

Protected integer variables.

template<class T>

int SPUC::Mat< T >::no_cols [protected]

template<class T>

int SPUC::Mat< T >::no_rows [protected]

The documentation for this class was generated from the following files:

matrix/matrix.h
matrix/fastmath.h
matrix/matfunc.h
matrix/specmat.h

Generated on Fri Sep 16 11:09:24 2005 for spuc by

1.4.4

SPUC::Mat< T > Class Template Reference

Public Member Functions

Protected Member Functions

Protected Attributes

Friends
